จอ Samkoon Model : SK-070QS-G ขนาด 7 นิ้ว ใช้ไฟ 24Vdc มี Port 232/485 มา1port Prot RS485 แยกออกมา1port internet LAN TCP 1พอร์ต USB-A USB-try C มาอย่างละ1พอร์ต์

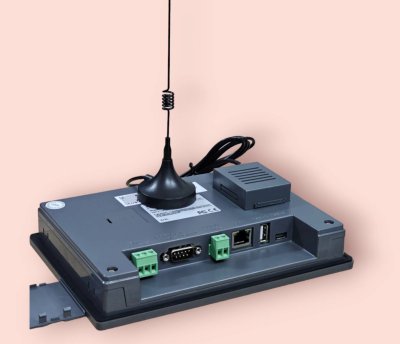

จอ Samkoon Model : SK-070QS-G ขนาด 7 นิ้ว ใช้ไฟ 24Vdc มี Port 232/485 มา1port Prot RS485 แยกออกมา1port internet LAN TCP 1พอร์ต USB-A USB-try C มาอย่างละ1พอร์ต์ จอรุ่นนี้เหมาะสำหรับทำ iot มากสามารถต่อ โมดูลเชื่อมต่อ Wifi ได้ 4G ได้ ทำ dashboard SCADA ได้
(เฉพาะหน้าจอ โมดูลwifiและ4G ขายแยก )

Structural Specifications:

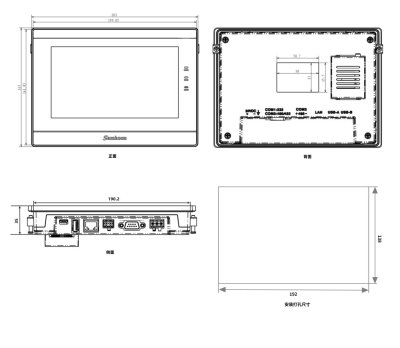

Dimensions: 203×145×35 (mm)
Mounting Hole Size: 192×138 (mm)
Weight: 700g
Housing Material: Sturdy engineering plastic (ABS+PC)

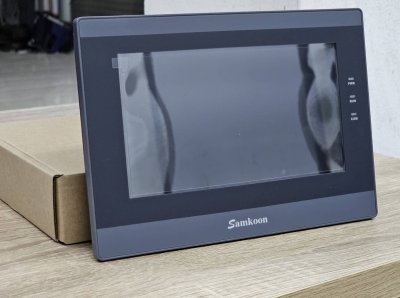

Display:

Display Size: 7 (16:9)
Resolution (Pixels): 1024×600
Touch Panel: High-precision 4-wire touchscreen
Display Colors: Impressive 16.7 million
Backlight Module: Utilizes efficient LED technology
Contrast Ratio: 400:1
Brightness (cd/m²): 450
Product Features/Certifications:

Memory: 128MB FLASH + 128MB DDR3
CPU: Dual-core Cortex A7 processor with a clock speed of 1GHz
Voltage Resistance Test: 1000V AC, 1 minute
Electrostatic Test: ±6kV
FCC Compatibility: Complies with FCC, Class A
CE Certification: Complies with EN55032 and EN55035 standards
Protection Level: IP65 (front panel)
Power/Interfaces:

Power Supply: DC12-24V ±15%
Power Consumption: 4W

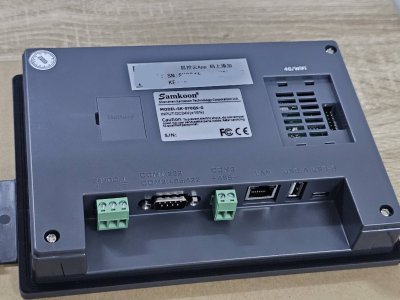

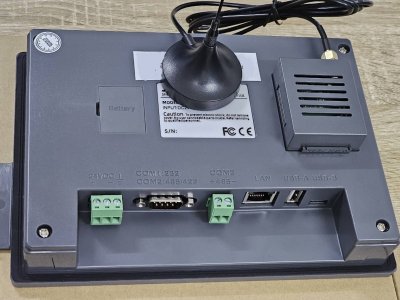

Serial Interfaces: COM1 (RS232), COM2 (RS485/422), COM3 (RS485)
USB Download Port: Yes
USB Port: Yes
SD Card: No
Ethernet Port: Yes
CAN: No
Network Connectivity:

WiFi: Yes (optional)
3G: No
Ethernet: Yes
4G: Yes (optional)
Environmental Conditions:

Operating Temperature: -20°C to 55°C (non-freezing)
Operating Humidity: 5-95% RH (non-condensing)
Vibration Resistance: Withstands 10-25Hz (XYZ direction, 2G for 30 minutes)
Programming Software:

Compatible with SKTOOL 7.0 for programming and customization.
The SK-070QS-G is a versatile and resilient industrial device, known for its flexibility and high performance. With a range of features and options, it is well-suited for a wide array of industrial applications.
